User Manual

1.0.0

Overview

Scree Rp1 0 Fig. 1 - Application Overview
1

Application UI

The upper and lower parts of the user interface make up the application- or host portion of RP-1. Settings and parameters which are not directly related to the effect portion such audio I/O, preset managment or tempo synchronisation are all found within this part of the app.

2

Effect UI

Sandwiched in between the Application UI is the Effect UI, all effect parameters and options related to the actual effects processing can be found here.

Note that the Effect part represents RP-1's Audio Unit Extension while the Application UI represets the Host Application. Consequently, when loading RP-1 into an AU Host such as Cubasis or AUM, only the Effect UI will be displayed.

Application UI

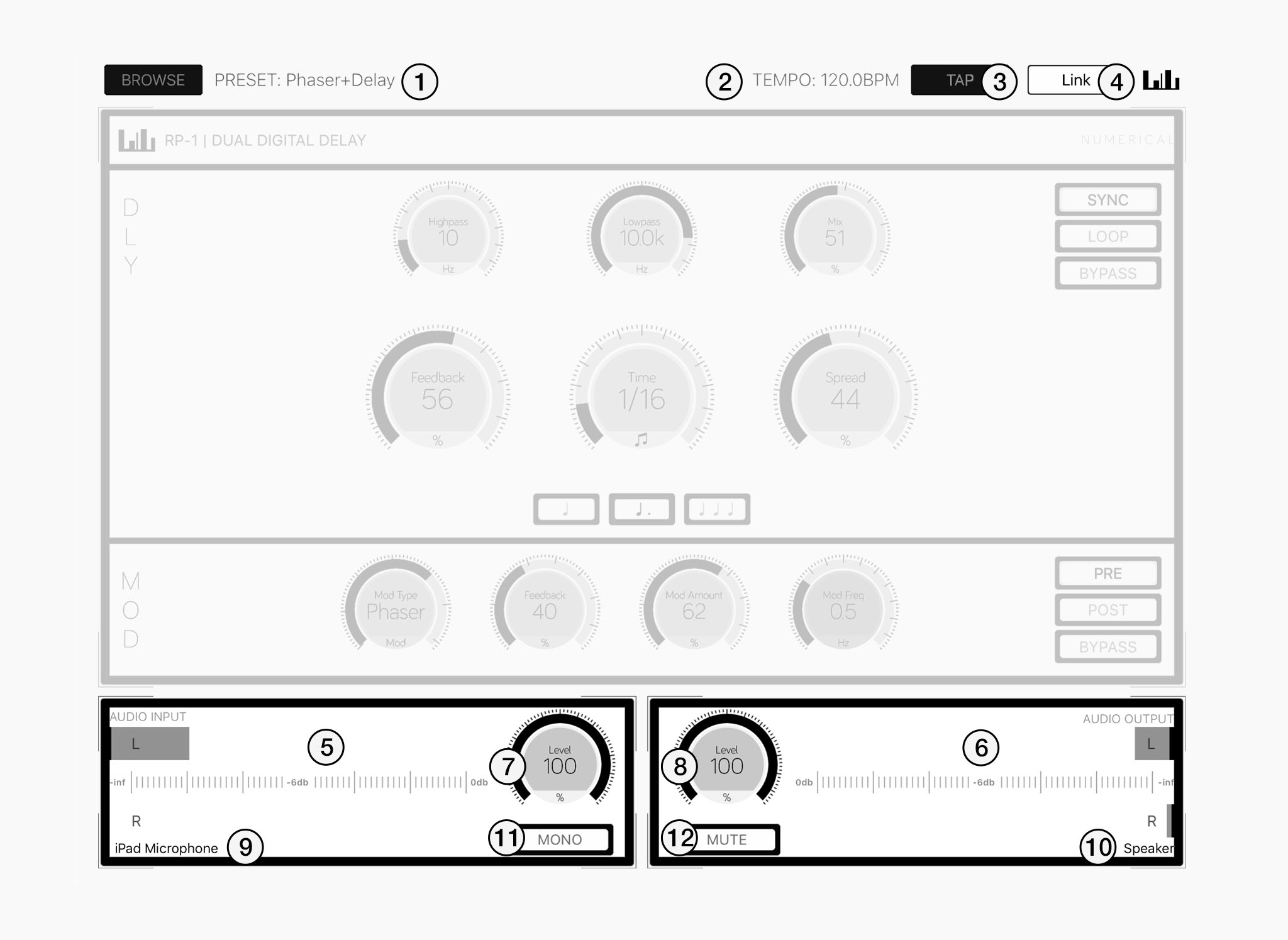

Scree Rp1 0 Fig. 2 - Application UI
1

Preset Selector

Tap the Browse button to bring up the preset selector.

2

Tempo

Displays the current tempo. Slide across to change the tempo.

3

Tap Tempo

Repeatedly tap the "TAP" button to set the current tempo.

3

Link

Tap the "Link" button to bring up the Ableton Link settings.

5/6

Level Meters

Level indicators for stereo input and ouput.

7/8

Audio Levels

Gain controls for audio input and output.

9/10

Audio Devices

Displays active audio device names for input and output.

11/12

Mono/Mute

Mono only uses the left input but still outpus in stereo.

Effect UI

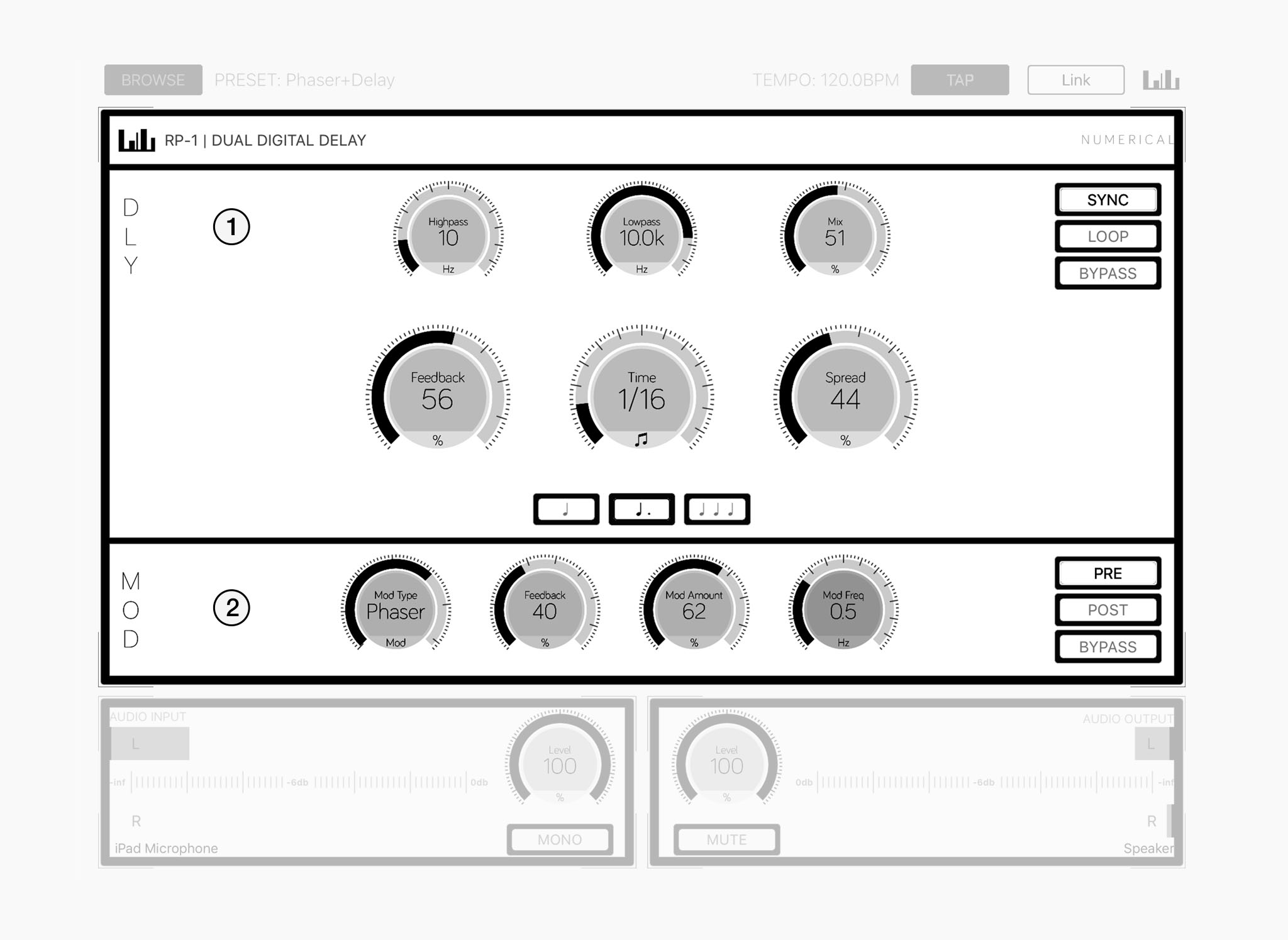

Scree Rp1 0 Fig. 3 - Effect UI

RP-1 features two independant delay lines with one being tailored to create echos of all kinds while the other is meant for various modulation effects.

1

Delay Section

The delay section includes all parameters for the first (long) delay line including delay time, feedback, mix and more.

2

Mod Section

All controls related to the second delay line can be found within the mod section.

Delay Section

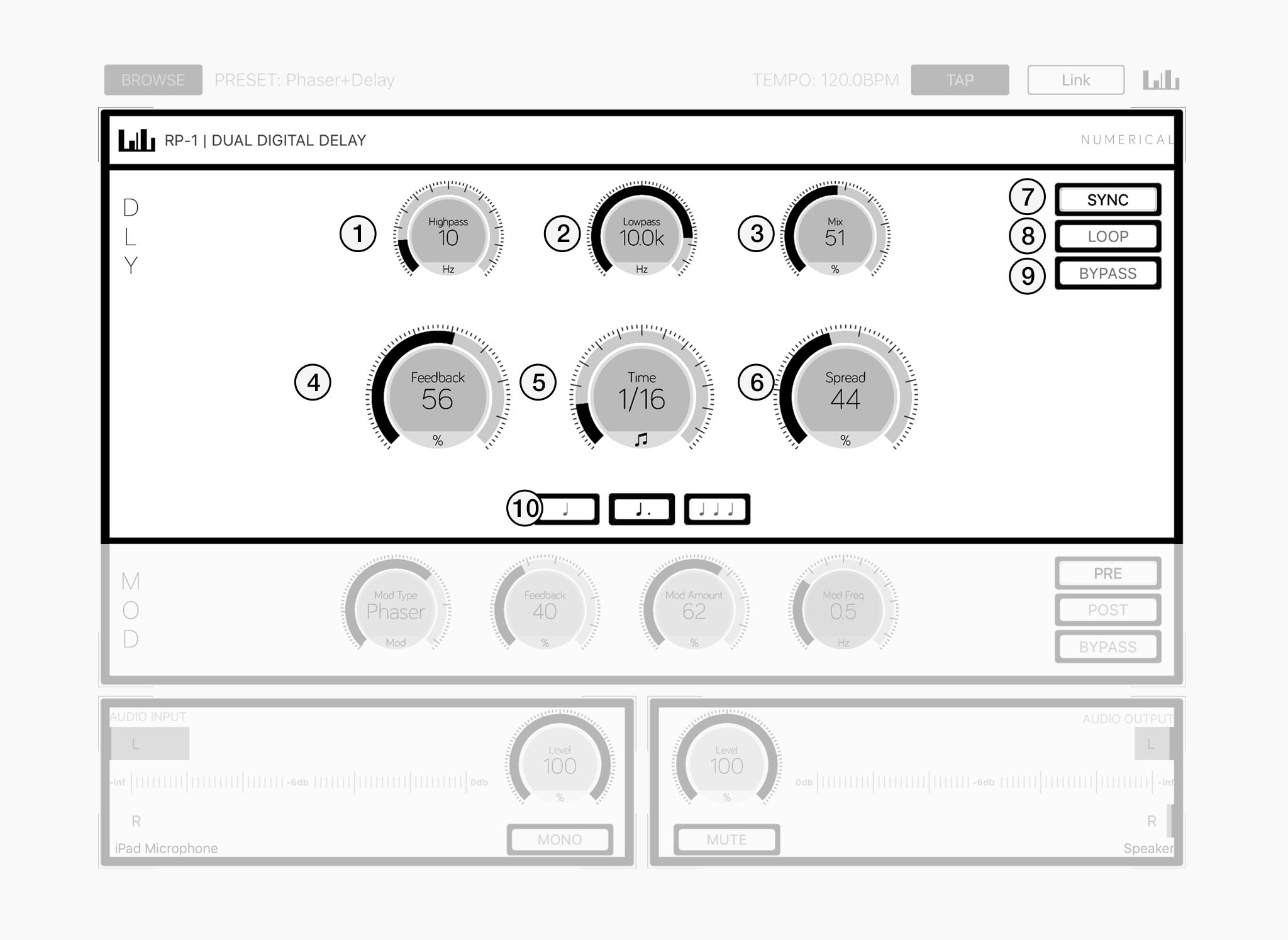

Scree Rp1 0 Fig. 4 - Delay Section
1/2

Filters

High- and Lowpass filters allow you to shape the sound before it enters the delay stages.

Use the highpass section to take out some bottom end for an overall cleaner sound or dampen the echo effect by cutting of some of the highs.

3

Mix

Adjusts how the wet and dry signals are mixed together at the effect output.

Hint: When using RP-1 as a send effect the MIX control should be set to 100%

4

Feedback

Controls the amount of feedback in the delay line.

...

5

Delay Time

Sets the time at which the input signal is delayed.

Depending on the current mode, time can either be set in milliseconds or clock divisions.

6

Spread

The spread parameter controls the effects stereo field.

7

Tempo Sync

The Tempo Sync option controls wether the delay is running in Free or Synced mode.

In Free Mode the delay time can be set in milliseconds and is freely adjustable.

In Synced Mode the delay time is synced to the host tempo and can be set in clock division.

8

Loop

Sets the time at which the input signal is delayed.

9

Bypass

When enabled, the delay section is bypassed completely.

10

Timing Select

Selects between normal, dotted or tripplet timing when running in synced mode.

Mod Section

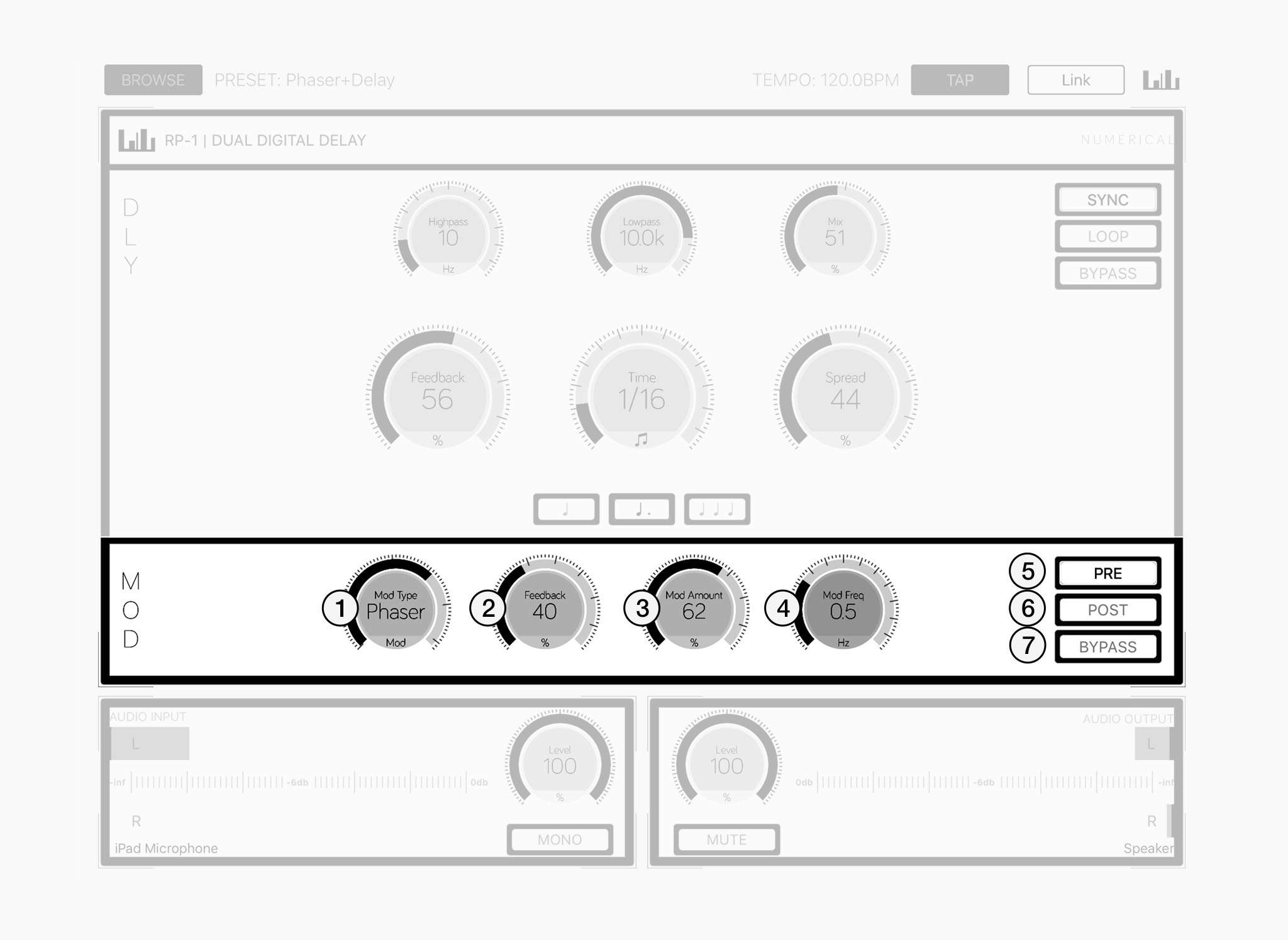

Scree Rp1 0 Fig. 5 - Mod Section
1

Modulation Type

Selects one of 7 different algorithms to configure the Mod Section.

Available algorithims are: Chorus, Vibrato, Flanger, Panner, Phaser, Tremolo & Delay

2

Feedback

Controls the amount of feedback.

Note that the effect of the feedback parameter depends on the current mod type.

3

Modulation Amount

Controls the amount of modulation that is applied with the source of modulation being the internal LFO.

Hint: high values tend to work best with slow modulations.

4

Modulation Frequency

Controls the rate of the internal LFO which is producing a sine wave in the range between 0.01hz and 10hz.

5/6

Routing

Configures the mod section to be routed either pre or post the regular delay.

In pre mode, the signal gets processed by the mod section first and is then fed into the regular delay causing variation in the echos (depending on the mod type) whereas in post mode the signal is delayed first and then fed to the mod section which causes echos to be processed as well.

7

Bypass

When enabled, the mod section is bypassed completely.

Block Diagram

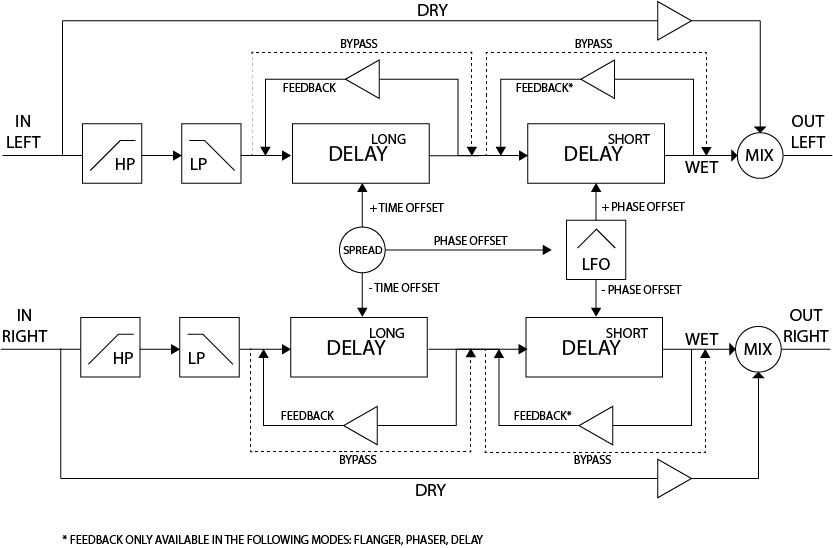

Flowcharts Gray Fig. 6 - Block Diagram

Connectivity

RP-1 supports all the standards you might expect to find in a modern iOS Music Application.

AU

AudioUnit Extension

RP-1 is built as a Audio Unit Extension, use it like a plug-in in your DAW.

IAA

Inter-App Audio

With Inter-App Audio you can use RP-1 when recording into other apps such as Garageband.

AB

AudioBus Filter

Use RP-1 as a AudioBus Filter to process audio from virtually any other app.

Link

Ableton Link

Sync RP-1's internal tempo with other Apps and Ableton Live.
